Roof ridge

A vapour permeable ridge tape in the form of two strips of pleated aluminium connected together by a high-strength geotextile, finished by high quality butyl adhesive strips from underneath.

Properties

An efficient ventilation of the ridge and roof corners by taking advantage of the vapour-permeable geotextile. The tape is air and moisture permeable, and prevents rain water snow and insects from penetrating under the roof covering. Its high resistance to weather conditions and UV radiation contributes to long life. Features extremely durable fastening of geotextile to aluminium. High tape flexibility ensures easy installation. Various tape widths allow a proper selection for a specific roof covering and shape. Pleated aluminium facilitates installation on major types of roof coverings. Other dimensions are available after inquiry and consultation with merchant.

Product specification

- size (width) 310mm
- thikness of the aluminum 0,11µ
- UV stabilization
- two materials: aluminium + geotextile
- air permeability 280 g/m²
- width of butyl glue 15 - 20mm - minimum installation temperature +5°C
- temperature resistance from -30°C + 80°C
- water permeability 3 g/m²/24h
- stretchability 35%

A vapour permeable ridge tape in the form of two strips of pleated aluminium connected together by a high-strength geotextile with increased air permeability. Combined with aluminium bonding process and additional sewing finished by high quality butyl adhesive strips from underneath.

Properties

An efficient ventilation of the ridge and roof corners by taking advantage of the vapour-permeable geotextile. The tape is air and moisture permeable, and prevents rain water snow and insects from penetrating under the roof covering. Its high resistance to weather conditions and UV radiation contributes to long life. Features extremely durable fastening of geotextile to aluminium. High tape flexibility ensures easy installation. Various tape widths allow a proper selection for a specific roof covering and shape. Pleated aluminium facilitates installation on major types of roof coverings. Other dimensions are available after inquiry and consultation with merchant.

Product specification

- size (width) 310mm
- thikness of the aluminum 0,11µ
- UV stabilization
- two materials: aluminium + geotextile
- air permeability 350 g/m²
- width of butyl glue 15 mm - 20mm
- minimum installation temperature +5°C
- temperature resistance from -30°C + 80°C
- water permeability 3 g/m²/24h
- stretchability 35%

A vapour permeable ridge tape in the form of two strips of pleated aluminium connected together by a high-strength polypropylene fabric with increased air permeability. Combined with aluminium bonding process and additional sewing finished by high quality butyl adhesive strips from underneath.

Properties

An efficient ventilation of the ridge and roof corners by taking advantage of high-strength polypropylene fabric. The tape is air and moisture permeable, and prevents rain water snow and insects from penetrating under the roof covering. High resistance to weather conditions and UV radiation contribute to long life. Features unique long lasting fabric fastening to aluminium. High tape flexibility facilitates easy installation.

Product specification

- size (width) 310mm
- thikness of the aluminum 0,11µ
- UV stabilization
- two materials: aluminium + polypropylene
- air permeability 290 g/m²
- width of butyl glue 15 mm - 20mm
- minimum installation temperature +5°C
- temperature resistance from -30°C + 80°C
- water permeability 3 g/m²/24h
- stretchability 35%

is entirely made of galvanized steel, it is used as fastening element of roof ridge batten, ensures easy and stable assembly.

Product specification

- Height: 210 mm
- Width: 40 mm, 50 mm
- Material: stainless steel
- Thickness of the metal sheets : 800 µ

Batten support bracket- Type 2 is made of galvanised steel. It is kind of protection for the horizontal ridge batten at the apex of the rafters, when the dry ridge system is fitting. There are four different bend points on the bracket, which accommodate for a range of roof pitches and tile heights and are designed to hold a single batten.

Product specification

- Height: 210 mm
- Width: 40 mm, 50 mm
- Material: stainless steel
- Thickness of the metal sheets : 800 µ

Material:

- The clip and wire are made of sainless steel, is properly bent depending on the purpose and type of roofing.
- The width between the plates- 18mm.

polypropylene joiner is 50mm wide, 320 mm length, has cuts on both sides so that adapts more easily to the roof, there are two smaller clips and one large clip inside which are made of polyamide.

polypropylene joiner is 50mm wide, 320mm length, is without cuts on both sites, fitted by two smaller clips on both sides and one large central clip, all are made of polamid.

is the widest one, polypropylene joiner is 70mm wide, has cuts on both sides so it fits to the roof more easily, there are two polyamide clips and in the middle a polyamide or steel cup with a non-rusting or galvanized steel screw.

Stailness steel clamping plate in thickness 0,8mm

Black painted metal clamping plate in thickness 0,7mm or 1,2mm

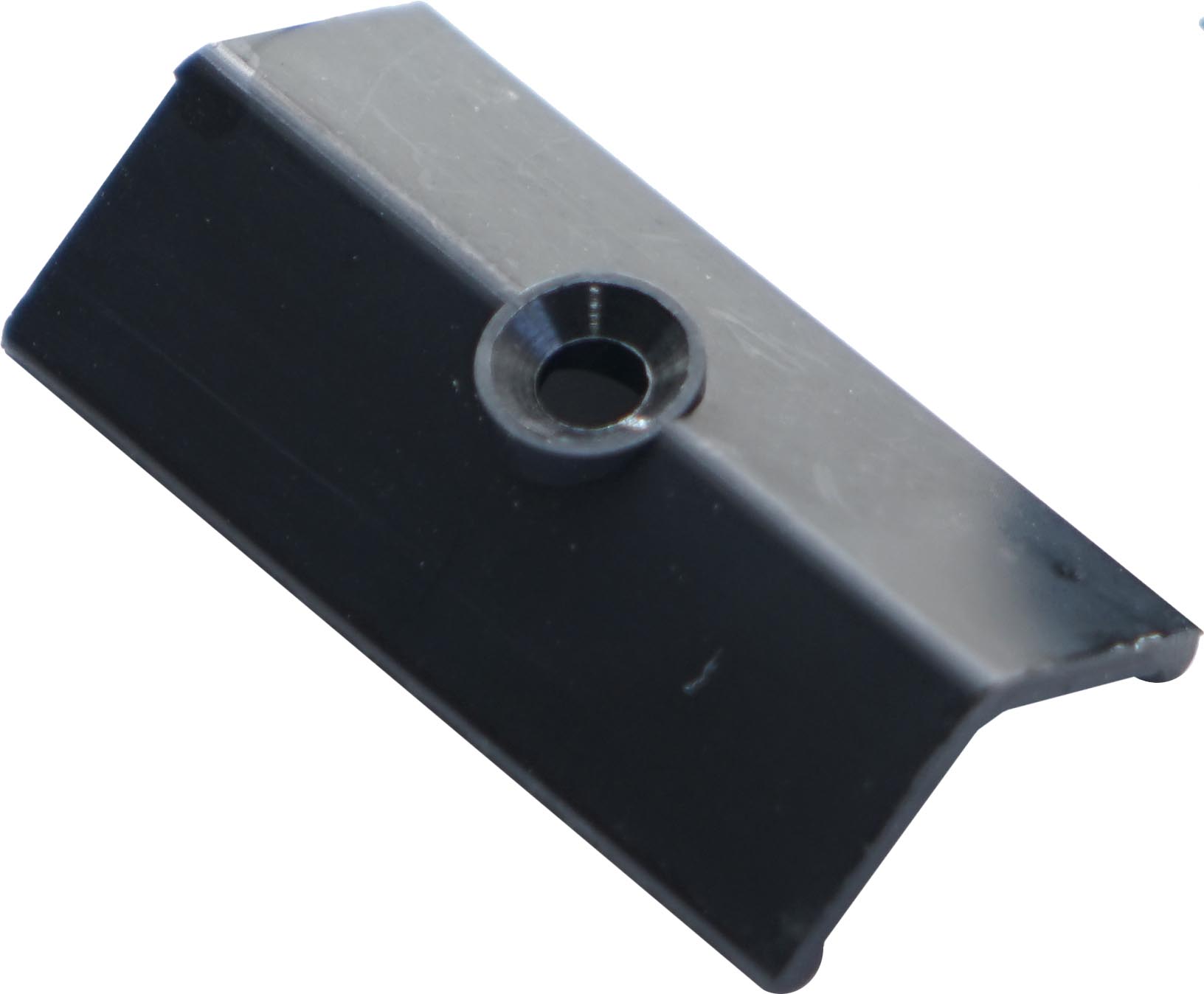

Polyamide plastic black clamping plate in thickness 1,2mm

RIDGE VENT ROLL TYPE 1

Properties

Product specification

RIDGE VENT ROLL TYPE 2

Properties

Product specification

RIDGE VENT ROLL TYPE 3

Properties

Product specification

BATTEN BRACKET TYPE 1

Product specification

BATTEN BRACKET TYPE 2

Product specification

Material:

RIDGE UNION TYPE 1

RIDGE UNION TYPE 2

RIDGE UNION TYPE 3

CLAMPING PLATE TYPE 1

CLAMPING PLATE TYPE 2

CLAMPING PLATE TYPE 3
